Edit partition table

You can edit Disk system records (MFT, Boot sector etc.) by using specially designed forms.

To edit partition table:

  1. In Disk Explorer select a physical device
  2. Open the Edit Partition Table dialog:
    • Use command Actions > Partition Table... from main menu;
    • Right-click the selected item and click Partition Table command from the context menu.
  3. Change desired fields to appropriate values

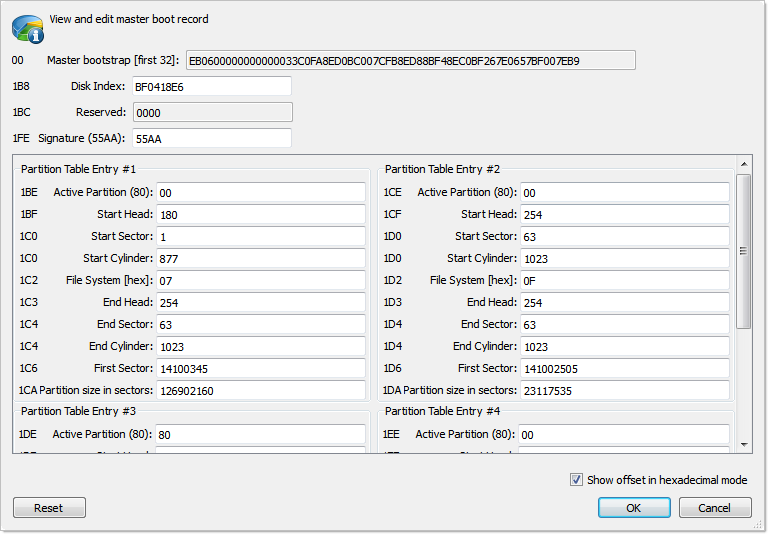

    Figure 1: Edit Partition Table dialog
    • To discard all changes and restore all values to fields in the dialog, click Reset.
    • To save all changes made in the dialog, click Save.
    Warning:

    Saving incorrect values might render the partition useless. You may not undo changes that you make in this dialog.

  4. Click OK to complete changes
